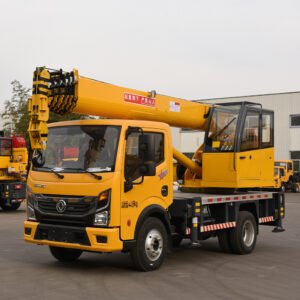

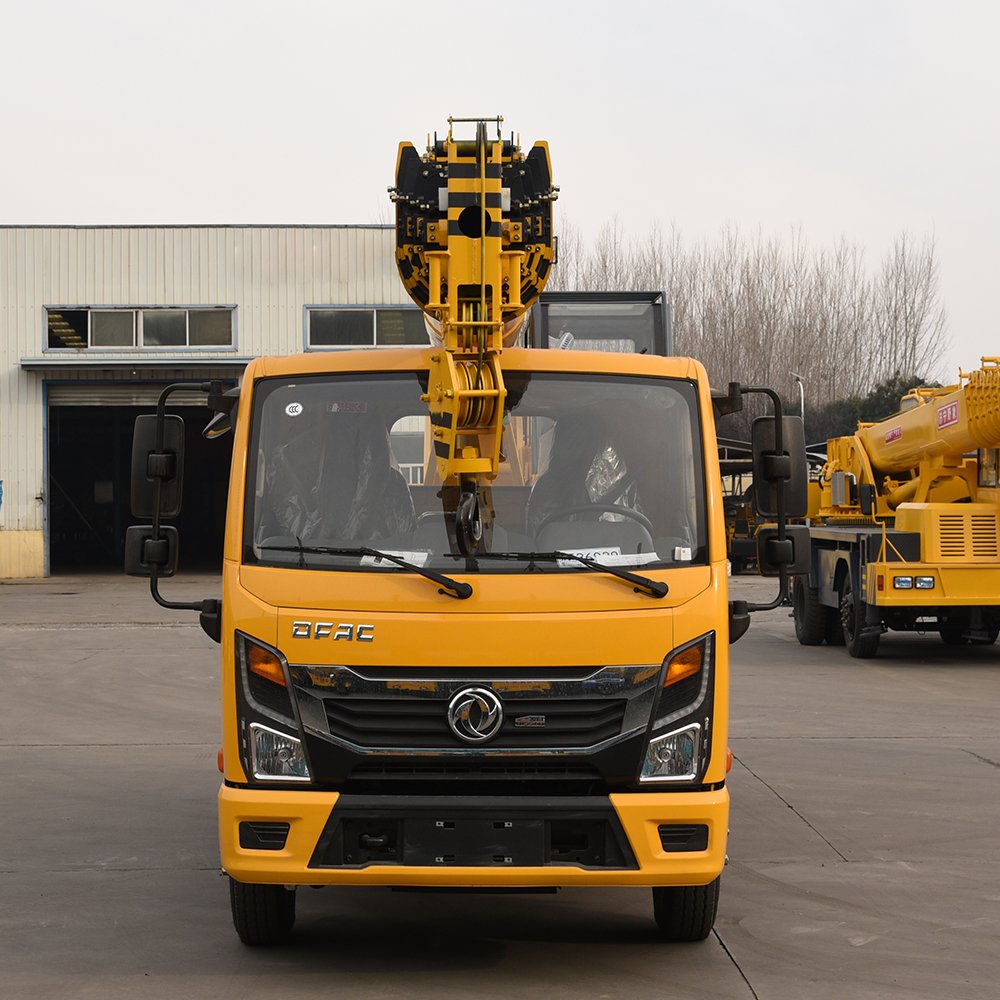

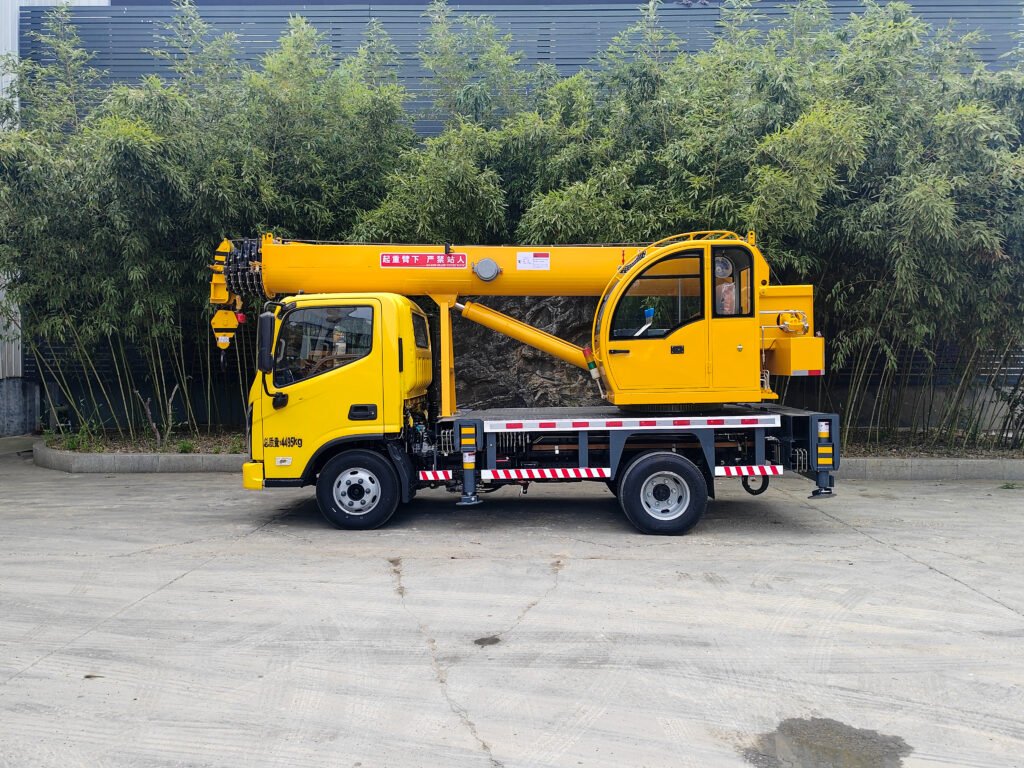

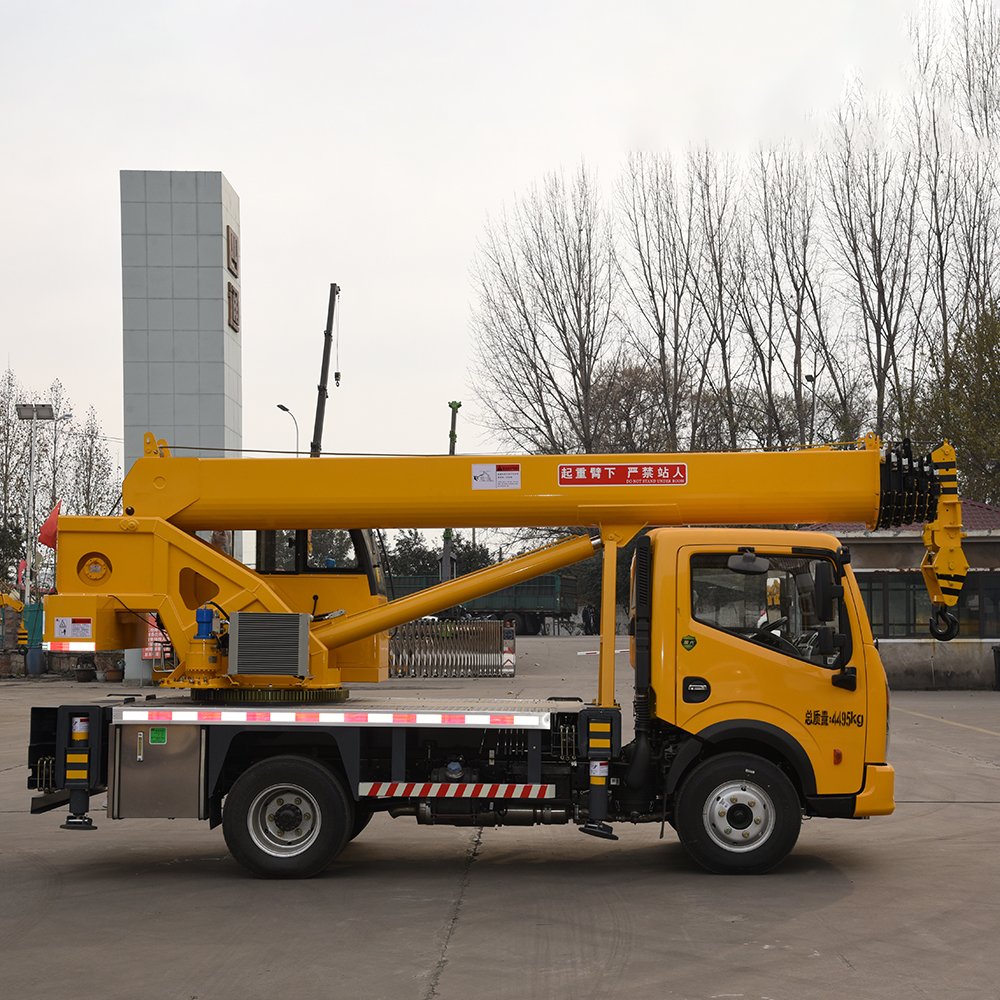

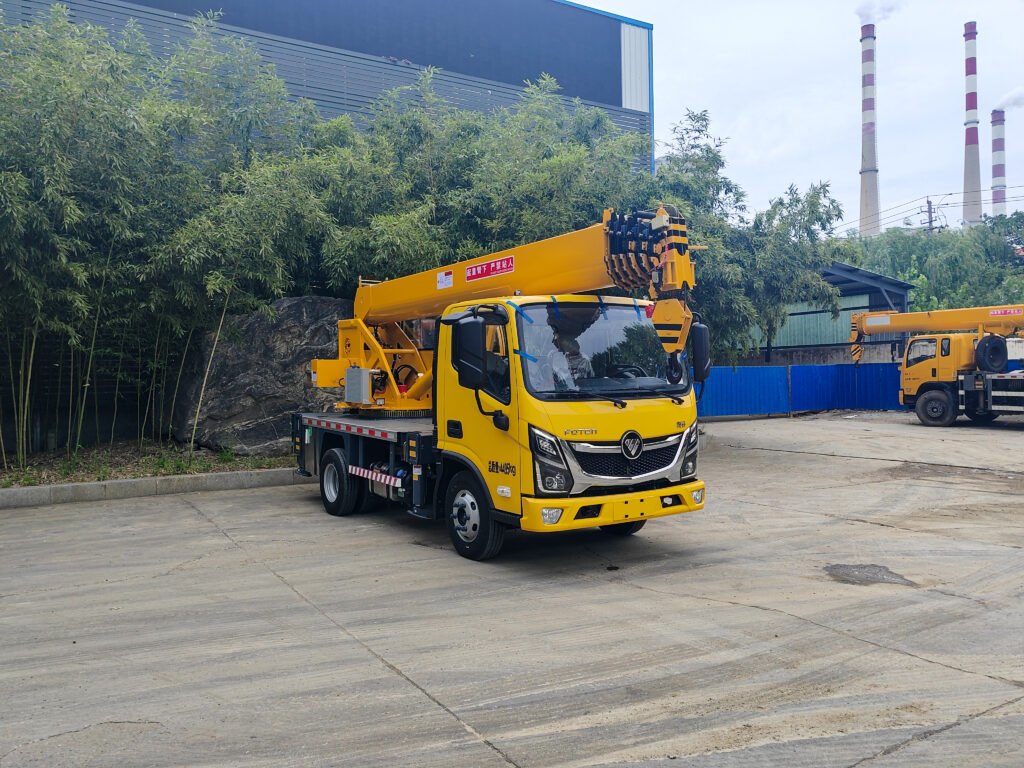

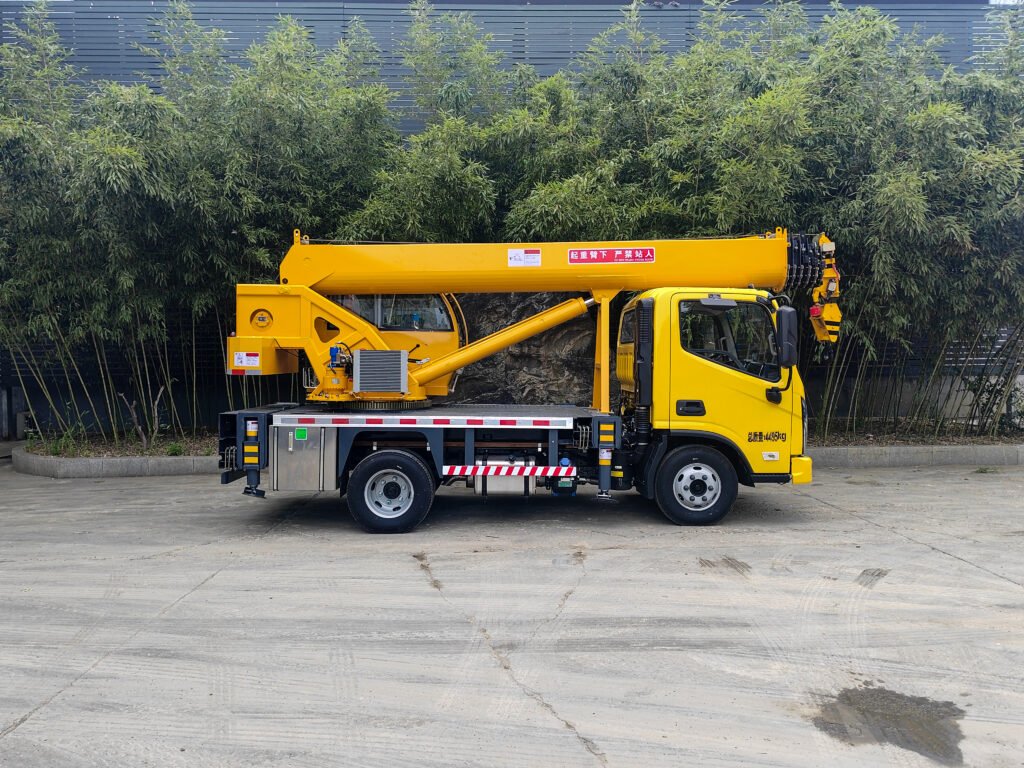

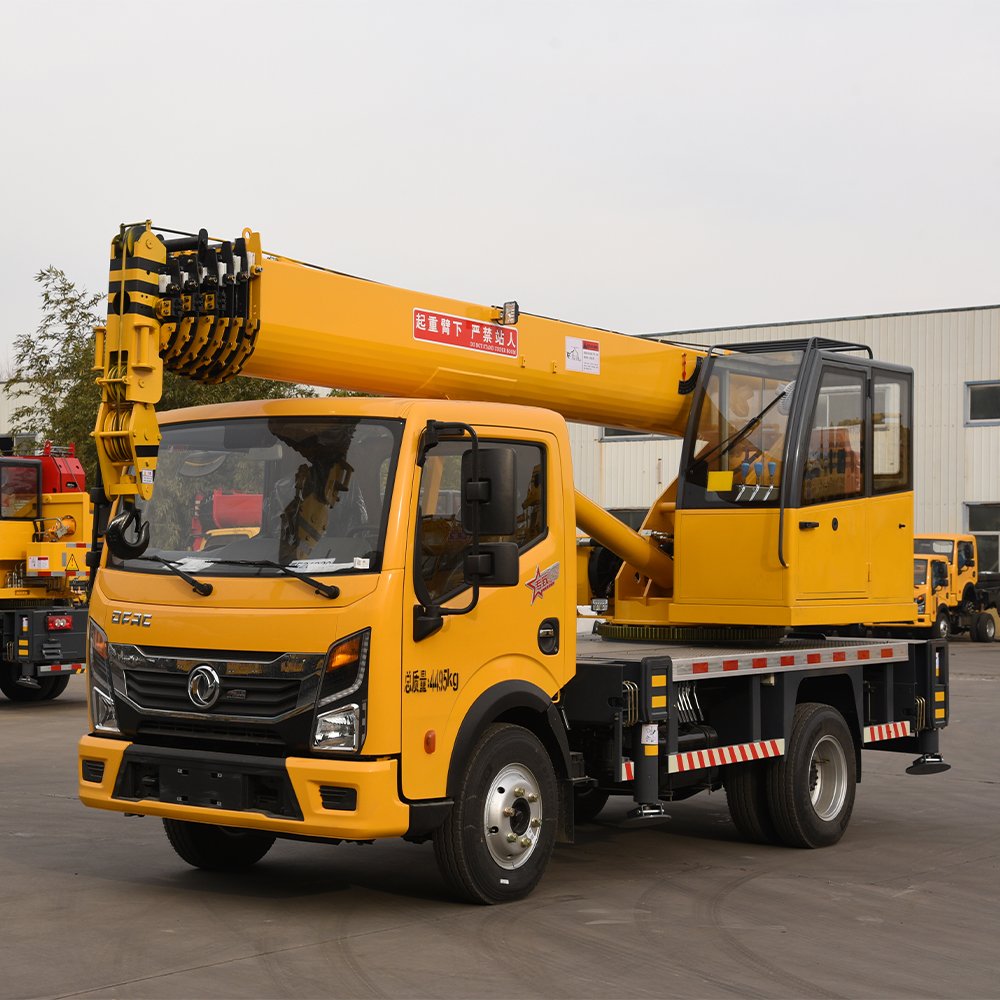

5 Ton crane specification
| Model | 5m*7 section Fukuda Aozora automatic transmission 5 tons | 5m*7 section 8 gear Fukuda M5
5 tons |
5m*7 section 8 release
5 tons |
5m*7 section 8 gear Dongfeng |
| Type of base plate | BV1045V9JDA-AB1 | BJ10145V9JBA-33 | FAW Liberation | Dongfeng Dolica |
| Maximum lifting capacity | 5000kg | 5000kg | 5000kg | 5000kg |
| Shoulder arm U-shaped | 5m* 7 sections-back rope | 5m*7 section-back rope | 5m*7 section-back rope | 5m*7 section-back rope |
| maximum height of lift | 30m | 30m | 30m | 30m |
| Calf span (horizontal * vertical) | 6*4.63m | 6*4.63m | 6*4.63m | 6*4.63m |
| outline dimension | 5.995*1.93.*2.66m | 5.995*1.93*2.85m | 5.995*1.9*2.77m | 5.98*1.9*2.6m |
| power of motor | 11kw | 11kw | 11kw | 11kw |
| Rise speed | 36（95）-76m/min | 36（95）-76m/min | 36（95）-76m/min | 36（95）-76m/min |
| swiveling speed | 0-3 rpm | 0-3 rpm | 0-3 rpm | 0-3 rpm |
| engine type | Yunnei YN25AL151 | Quanchai Q25A150E60 | CA4DB1-15E68 | Quanchai Q25D-162E60 |
| engine power | 110kW/151 horsepower | 110kw/150 horsepower | 112kw/152 horsepower | 116kw/162 horsepower |
| Type of tyre | 700R16 | 700R16 | 700R16 | 700R16 |
| running speed | 105km/h | 115km/h | 110Km/h | 95km/h |
| Type of reducer | 8T planetary reducer | 8T planetary reducer | 8T planetary reducer | 8T planetary reducer |
| Rotating support | 8T900# | 8T900# | 8T900# | 8T900# |
| Size of thigh | 270*140mm | 270*140mm | 270*140mm | 270*140mm |
| Central rotation | Electric rotation | Electric rotation | Electric rotation | Electric rotation |
| Directional forms | assistance | assistance | assistance | assistance |
| Brake type | Gas Brake | Gas Brake | Gas Brake | Gas Brake |
| gear-box | ZF automatic transmission | Wanliyang 8 gear transmission | Wanliyang 8 gear transmission | Wanliyang 8 gear transmission |
| Postero-scapular spine | not have | not have | not have | not have |
| conduct oneself with dignity | 7700kg | 7500kg | 7500kg | 7500kg |
| pilothouse | Trio | Trio | Trio | Trio |
| effluent standard | Country 6 | Country 6 | Country 6 | Country 6 |
| wheel base | 2800mm | 2800mm | 2800mm | 2800mm |
| Main hook winch | 8T winch | 8T winch | 8T winch | 8T winch |
| Secondary hook winch | not have | not have | not have | not have |
